Building a Portable Certification Readiness Rig for Rapid Rehearsals
n
Creating a compact, cost-conscious test fixture kit lets a shop rehearse AWS/ASME lab runs in-house. The goal is to mirror the critical dimensions, calibration steps, and fixture gaging used during certification so reps feel confident on exam day.
n
Key components include modular fixture plates, calibrated gauges and dial indicators, a small welding jig, and a traceability plan. A portable frame and clamp system keep all fixtures stable and repeatable, even in a busy shop corner. For a proven structure, see the certification lab playbook.
n
To maximize realism without breaking the budget, design the rig to reproduce typical test setups: a couple of butt joints, a fixed root gap, and a minimal set of welding positions. Use mock lab trials as your rehearsal proxy, calibrating fixtures and gauges during each run so changeovers stay quick.
n
Plan a four-week rehearsal cycle to build muscle memory, verify calibration, and track pass-rate improvements. The cycle should ramp from setup practice to full mock runs, with checklists at the end of each week. Review outcomes using a simple scorecard and reference the 4-week certification cycle framework to stay aligned with certification rhythms.
n
Practical budgeting tips: reuse existing fixture plates where possible, source off-the-shelf gauges, and document every calibration step for traceability. A small investment in a portable power supply, clamps, and durable surface mounting goes a long way toward reliability during rehearsals and on test day.
n

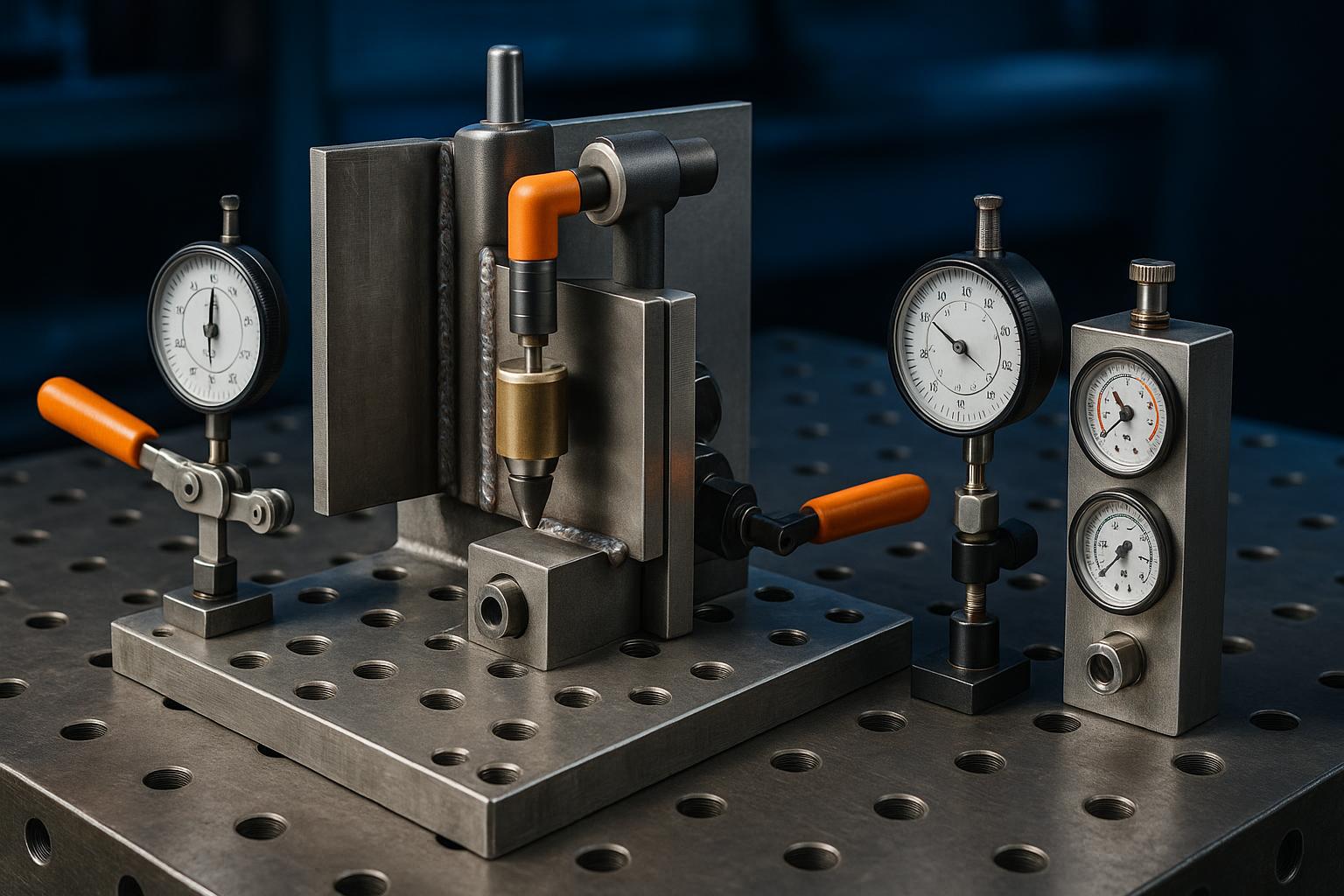

Core components of the portable rig
n
- n
- Modular fixture plates
- Calibrated gauges and dial indicators
- A small welding jig
- Clip-on clamps and a lightweight frame
- Traceability documentation
n
n
n
n
n
n
For longer-term planning, align your rehearsal with the certification study blocks approach to sustain improvement between lab runs.
